1757268
Manufacturer:
Phoenix Contact
Mfr.Part #:
1757268
Datasheet:
Description:

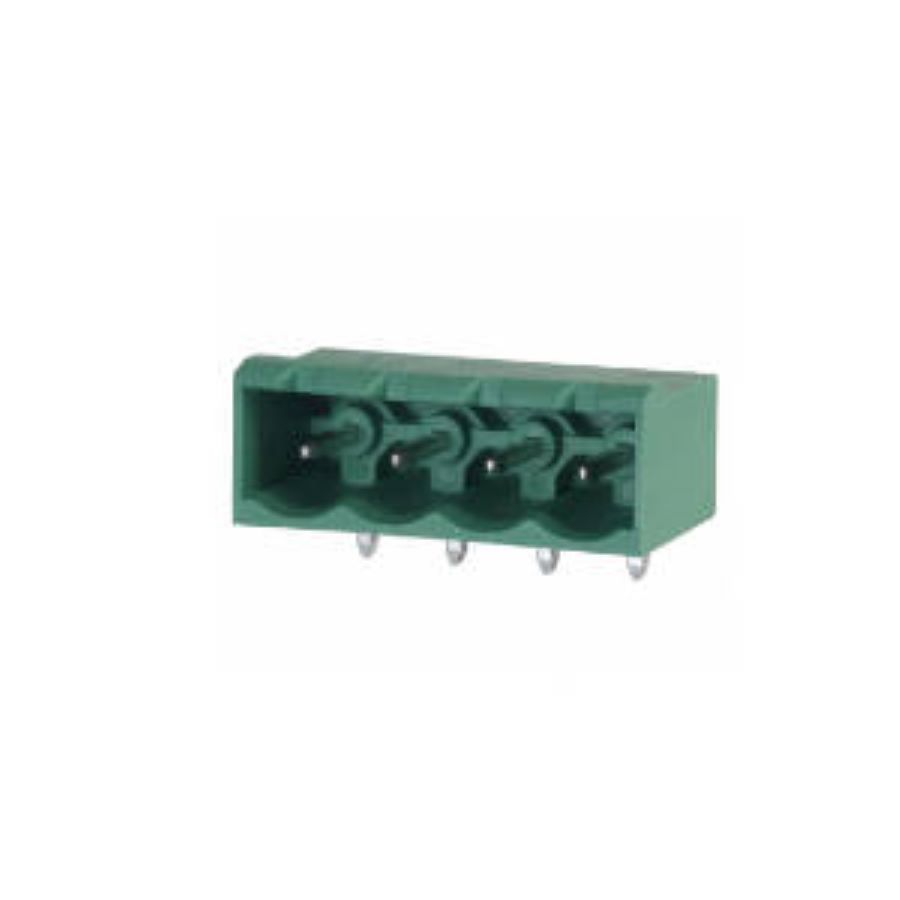

Terminal Blocks Through Hole 4 5.08 mm 15 A 300 V
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Voltage | 250 V |
| Contact Plating | Tin |
| Pitch | 5.08 mm |
| Current Rating | 15 A |
| Flammability Rating | UL94 V-0 |
| Orientation | 90° Angle (Right) |
| Color | Green |
| Gender | Male |
| Number of Contacts | 4 |
| Mounting Style | Through Hole, Solder, PCB |
| lead free status | Lead Free |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Plastic |
| Number of Positions Per Level | 4 |
| Number of Levels | 1 |
| size width | 12.0 mm |
| size length | 22.3 mm |
| size height | 8.60 mm |
| voltage rating dc | 250 V |
| voltage rating ac | 250 V |
| Housing Color | Green |
| pin pitch | 5.08 mm |
| Connection Method | Plug |
| Current Rating (IEC) | 12 A |
| Voltage Rating (IEC) | 250 V |
Stock: 160
Distributors
pcbx
pcbxUnit Price$0.52243
Ext.Price$0.52243
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.52243 | $0.52243 |
| 10 | $0.41318 | $4.13180 |
| 25 | $0.37384 | $9.34600 |
| 50 | $0.33825 | $16.91250 |
| 100 | $0.30605 | $30.60500 |
| 300 | $0.27691 | $83.07300 |
| 500 | $0.25055 | $125.27500 |
| 1000 | $0.23416 | $234.16000 |
